Main Distribution Box

Lub Thawv Loj Loj txuas ncaj qha mus rau lub tshuab hluav taws xob lossis lub nroog fais fab.
Nws yuav siv hluav taws xob tom qab hloov hluav taws xob thiab xa nws mus rau qib tom ntej ntawm cov thawv xa khoom.
Cov khoom no ua tau raws li IEC 61439-1 tus qauv thoob ntiaj teb.
Nws qhov ntsuas hluav taws xob hluav taws xob yog 1000V.
Qhov ntsuas ua haujlwm tam sim no nyob ntawm 250A txog 6300A.
Yog li nws tuaj yeem ua tau raws li lub zog xav tau ntawm cov tsev lag luam me thiab cov chaw tsim khoom loj.
Peb cov neeg siv khoom suav nrog cov npe loj xws li Tuam Tshoj Railway, Tuam Tshoj Railway Kev Tsim Kho, Tuam Tshoj Kev Sib Txuas Lus, thiab Tuam Tshoj Kev Tsim Kho.
Cov haujlwm no ua pov thawj tias Lub Thawv Loj Loj tuaj yeem tswj hwm tag nrho cov phiaj xwm hluav taws xob tau ntseeg tau.

Peb tsim lub thawv lub cev nrog txias- dov steel phaj tsis pub tsawg dua 1.5mm tuab.
Koj tuaj yeem xaiv 304 stainless hlau.
Cov hlau mus dhau degreasing, xeb tshem tawm, phosphating, thiab tom qab ntawd electrostatic hmoov txheej.
Lub thickness ntawm txheej yog tsis tsawg tshaj li 60μm.
Qhov no ua rau lub thawv muaj zog tiv thaiv corrosion thiab cuam tshuam.
Kev tiv thaiv qib yog IP40 txog IP54, yog li nws tiv taus plua plav thiab dej.

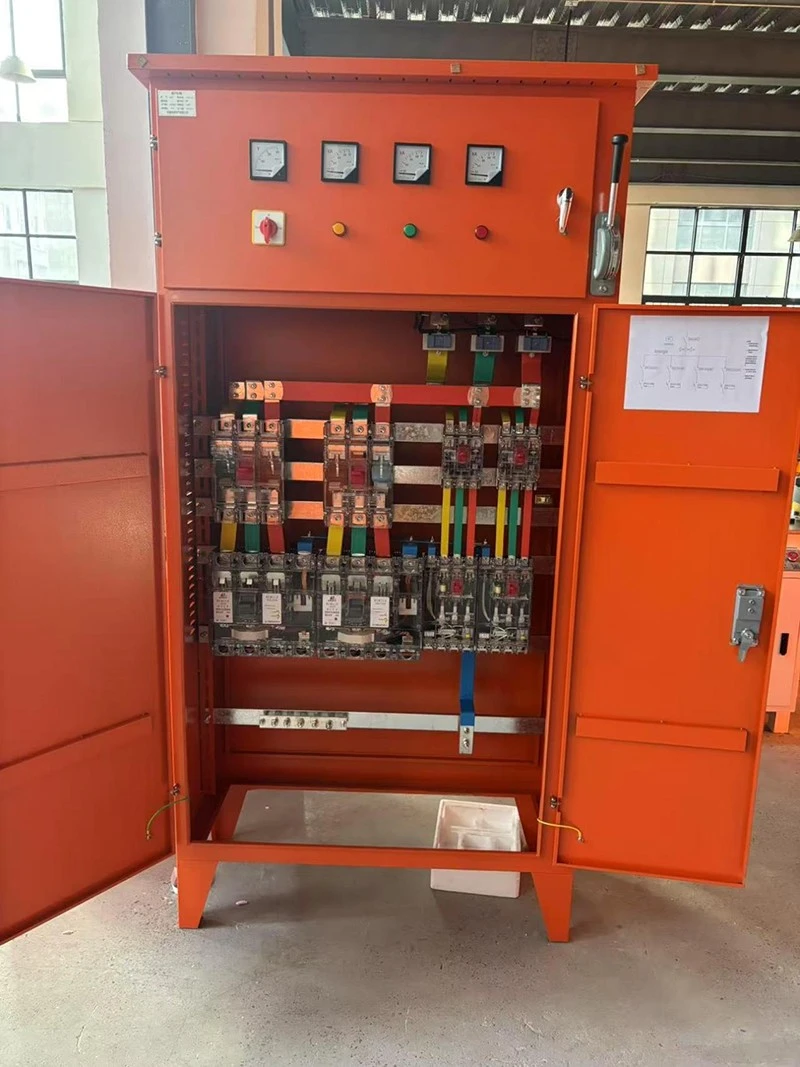

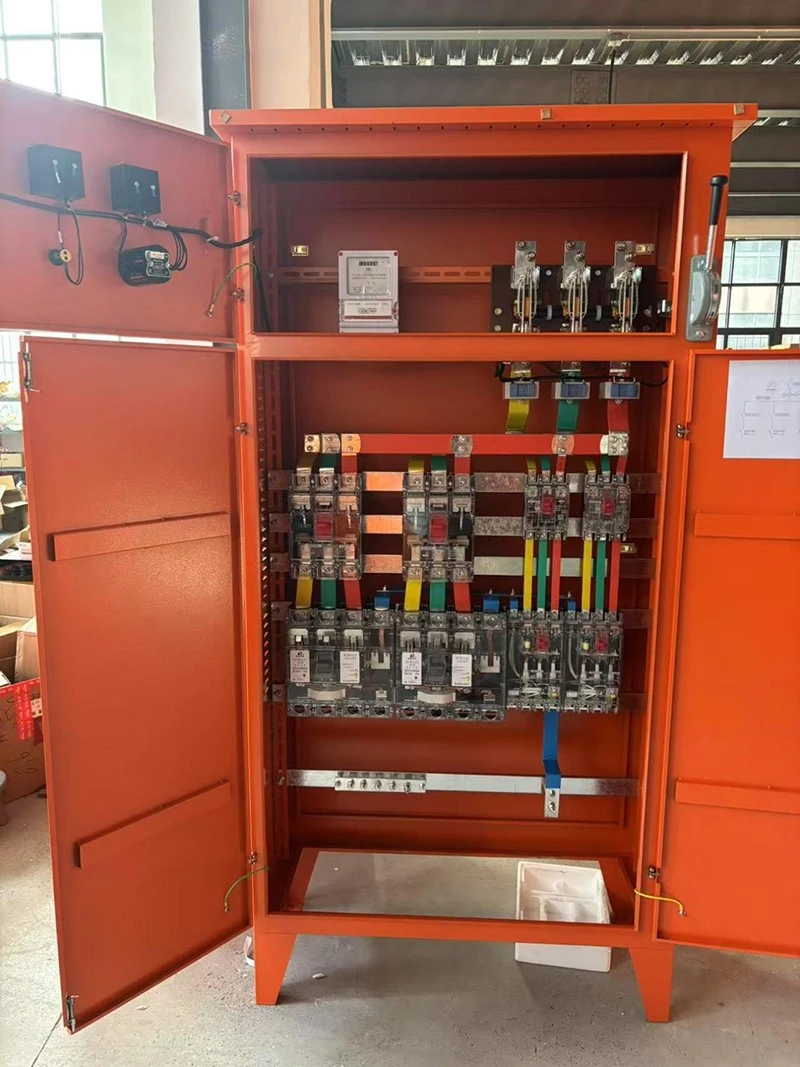

Cov qauv sab hauv yog modular.
Rau lub busbar tseem ceeb, peb siv siab - conductivity T2 liab tooj liab.
Cov tooj liab txuas qhov chaw yog tin -plated los yog silver-plated kom qis kev tiv thaiv.
Peb siv laser txiav, CNC dabtsi yog khoov, thiab tsis siv neeg vuam khoom.
Txhua qhov loj yog tswj tsis pub dhau ± 0.5 hli.
Peb lub Hoobkas yog 2,000 square meters thiab muaj ISO9001 ntawv pov thawj.

Ua ntej, kev tiv thaiv kev nyab xeeb tiav.
Txhua qhov chaw nyob tau raug cais tawm thiab tuaj nrog pob tshab PC tiv thaiv npog.
Peb siv cov khoom lag luam - lub npe hloov pauv tseem ceeb xws li ABB, Schneider, lossis CHINT - cov no suav nrog cov kab hluav taws xob thaiv hluav taws xob thiab cov ntaub ntawv molded Circuit Court breakers.
Lawv muaj peb los yog plaub theem ntawm kev tiv thaiv: overload ncua ncua sij hawm, luv luv Circuit Court ncua, luv Circuit Court instantaneous, thiab av txhaum.
Lub peev xwm tawg yog tshaj 65kA.
Yog li txawm tias muaj qhov txhaum loj, nws txiav tam sim no sai thiab tiv thaiv koj cov khoom siv qis.
Qhov thib ob, expansion thiab configuration yog hloov tau.
Peb khaws 30% qhov chaw seem hauv Circuit Court rau kev thauj khoom yav tom ntej.
Koj tuaj yeem xaiv qhov kev faib tawm ntse.
Peb ntxiv ntau -function fais fab ntsuas thiab kev sib txuas lus modules uas txhawb Modbus-RTU raws tu qauv.
Tom qab ntawd koj tuaj yeem saib xyuas qhov voltage, tam sim no, lub zog muaj zog, thiab cov ntaub ntawv hluav taws xob nyob deb.
Cov ntaub ntawv ntawd tuaj yeem mus rau koj lub tsev automation system (BAS) los pab tswj lub zog.
Thib peb, nws ua raws li cov cai thiab muaj daim ntawv pov thawj.
Lub Thawv Loj Loj no muaj CCC daim ntawv pov thawj hauv tebchaws thiab CQC daim ntawv pov thawj yeem.
Nws ua tau raws li cov qauv kev nyab xeeb rau Tuam Tshoj thiab cov lag luam loj thoob ntiaj teb.
Peb kuj kho nws rau koj - piv txwv li, sib txawv cable nkag / tawm txoj kev (sab saum toj- sab saum toj- tawm, sab saum toj- hauv qab - tawm) thiab xim zoo li RAL 7035 lub teeb grey.
